Description

• The V.W Inclinometer is useful for measuring ground displacement caused by stress concentration (convergence) during excavation works such as tunnels, mines, and communication ducts.
• When displacement occurs due to rock movement or relaxation, it is transferred to the VW displacement sensor through the anchor rod. The tension of the vibrating wire changes accordingly.
• When the vibrating wire is magnetized by the magnetic coil, it generates a resonant frequency that is transmitted to the readout device, where it is displayed in engineering units. This allows measurement of the rate, ratio, magnitude, and range of displacement.

Composition & Characteristics

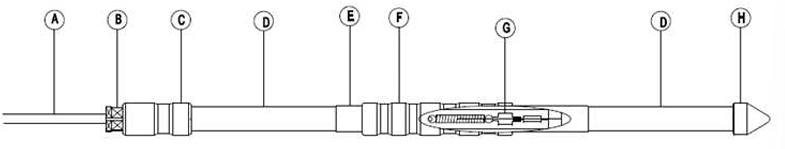

▣ Product Components

① VW Displacement Sensor
② Cable

▣ Features

• The VW displacement sensor is designed with a total measuring range of 50 mm.
• Before shipment, each sensor is individually calibrated using a dedicated calibration device to ensure reliability by matching displacement with frequency characteristics.
• A precision-grade temperature sensor is built in to compensate for thermal expansion of the gauge caused by temperature variation.
• The product is waterproof and corrosion-resistant.

Specification

Model	SJ-1100 (Type-1: Sliding Anchor)	SJ-1101 (Type-2: Embedded Type)
Applicable Sensor	Vibrating Wire Sensor (VW Type)
Measurement Range	1,400 ~ 3,500Hz (0 ~ 50mm)
Measurement Range (Strain)	Min 1,000 ~ Max 4,000µε
Resolution	0.01mm
Accuracy	±0.25% FSR
Non-linearity	±0.5% FSR
Operating Temperature	-20°C ~ 50°C
Temperature Sensor Operating Range	RTD: -45°C ~ 100°C	Thermistor: -30°C ~ 80°C
Temperature Sensor Accuracy	RTD: ±0.7°C	Thermistor: ±1°C
Thermal Expansion Coefficient	11 × 10⁻⁶°C
Number of Measuring Points	4 Points
Minimum Borehole Diameter	Ø38mm or more
Sensor Body	Special Stainless Steel, Copper Alloy
Anchor Rod	Stainless Steel (Ø4×Ø6mm)
Anchor Rod Protective Cover	Nylon Tube (Ø8×Ø10mm)
Signal Cable	Ø10mm, 0.235mm² × 8C Shielded PVC Cable (3m)

This product is subject to change without prior notice for quality improvement.
