Description

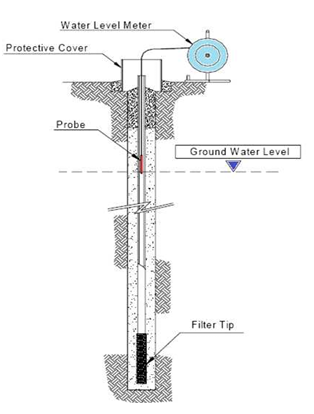

- This groundwater level meter is a simple device used to measure the depth of water in groundwater monitoring wells or general observation wells at construction sites.
When the probe is lowered into the well and comes into contact with water, a buzzer sounds to indicate the water level depth. - It can also be used for multi-layer settlement measurements.
Composition & Characteristics
▣ Product Components
① Integrated probe and tape
▣ Features
① Can be used continuously for 24 hours
② Lightweight design for convenient use
③ Quick after-sales service available
Specification
| Model Name | SJ-800 |
|---|---|
| Measuring Depth | 50 m |
| Minimum Scale | 0.1 cm |
| Tape Width | 12 mm |
| Tape Thickness | 2 mm |
| Dimensions |
L = 230 × 230 mm / Circular plate D(Ø) = 200 mm Probe: L = 175 mm, D(Ø) = 9.2 mm |
| Weight | 2.85 kg |
| Power | AA batteries |
