Three-dimensional displacement measuring device(3차원 변위 측정 장치)

Description

As a system to connect the sensor in 1.0m unit to measure inner section displacement of the tunnel convergence, it calculates accurate values using a sensor for each displacement and length
in high resolution.

▣ Application

① Measurement of inner section displacement of convergence after completion of the tunnel structure (Measurement for maintenance)
② Measurement of inner section displacement of convergence of the underground structure in adjacent section of construction. (Measurement during the construction)

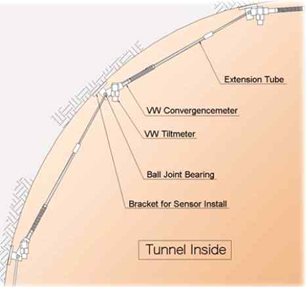

Composition & Characteristics

▣ Composition

① Cross-sectional convergence displacement sensors (length, angle)
② Mounting bracket and extension rod
③ Anchor plate and bolt

▣ Features

① Each sensor cable is configured into a one-line connection, making installation easy and significantly reducing installation time.
② The anchor block angle adjustment and fastening device connection are simple, allowing for convenient installation.
③ The one-line cable system also helps reduce installation costs.

Specification


Model	SJ-9100
Applied Sensor	Tilt displacement: MEMS sensor / Length displacement: Electric sensor
Measuring Range	Tilt displacement: ±5° / Length displacement: 25 mm
Resolution	Tilt displacement: 5 arc seconds / Length displacement: 0.001 mm
Accuracy	±0.1% FSR
Linearity Error	±0.5% FSR
Operating Temperature	-30°C ~ 70°C
Specification	L = 1.0 m, D(ø) = 24 mm (Customizable by depth/length)
Material	Stainless steel, Fluorine-based O-ring, Aluminum

Reference

Subjects	General type (Linear fixing)	Free movement type (Ball bearing)

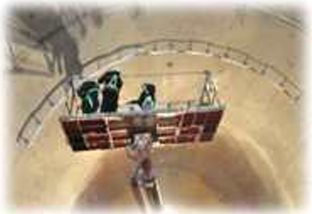

Installation method	Drilling & insert for fixing pin Sensor fixing Cable fixing Connect automation system	Drilling & insert for special fixing pin Sensor fixing Connect automation system
Advantage	Numerous field applications & references	< Sensor > Accurate measurement when there is distortion or deformation in the structure. Cable is one-line and easy to install. Installation time can be saved much compared to conventional systems. < Accessory > Easy to install due to a special fixing pin adopted. Excellent applicability for the surface irregularities of the structure.
Disadvantage	Long installation time and inconvenient for sorting due to bundle cables Functional Limit in detecting displacement in case of distortion or deformation of the Structure	Not much field applications & references
Economic conditions	Excessive extra expense (Long installation time and much manpower required)	Good (Minimum installation time and manpower) The sensor price is the same as the conventional type.
