Description
During tunnel construction, this sensor measures the displacement of the tunnel face ahead of the excavation at intervals of 1.0 to 3.0 meters.
By using high-resolution sensors, it provides highly accurate measurement results.
▣ Application

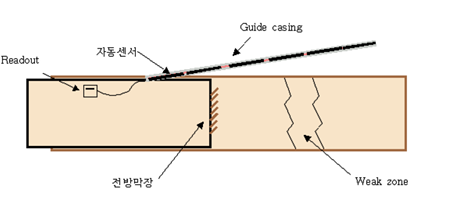

- Measurement of the advance displacement at the tunnel face during tunnel construction
Composition & Characteristics
▣ Product Composition
① Advance displacement sensor
② Connecting rod
③ Cable & accessories
▣ Features
① Each sensor cable is configured into a one-line connection, making installation simple and significantly reducing installation time.
② The one-line cable system also helps reduce installation costs.
| Model Name | SJ-2500 (1 axis) | SJ-2501 (2 axes) |
|---|---|---|
| Applied sensor | MEMS Sensor | |
| Measurement range | ±15° | |
| Resolution | 0.001785714 (Degrees/Volt) | |
| Accuracy | ±0.1% FSR | |
| Linearity error | ±0.5% FSR | |
| Operating temperature | -20°C ~ 50°C | |
| Dimension | L = 500 mm, D(ø) = 36 mm (customizing available depending on depth/length) | |
| Material | Stainless steel pipe | |
