Description
It measures the magnitude of acceleration, its changes, and the resulting velocity at a specific point on a structure to analyze structural stability and dynamic effects.
For long-term stable data acquisition, the housing and signal cable are fully watertight and moisture-proof, enabling use in harsh civil engineering environments while protecting against external impacts.
▣ Applications
① Measuring dynamic behavior of bridge cables
② Analyzing modal shapes, natural frequencies, and vibration acceleration
Composition & Characteristics
▣ Components

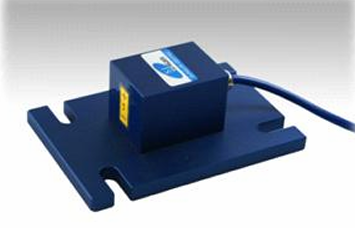

① Acceleration sensor & housing
② Signal cable
③ Mounting jig for sensor fixation
▣ Features
① High stability in extreme environments
② Excellent reproducibility and responsiveness, unaffected by cable length or resistance changes
③ Optimized design with high sensitivity for specialized applications
Specification
SJ-7000 Accelerometer Specifications
| Model Name | SJ-7000 |
|---|---|
| Sensor Applied | Capacity |
| Measurement Range | ±0.25 ~ 4.0 g |
| Frequency Band | DC ~ 300 Hz |
| Hysteresis | Below 0.1% |
| Working Temperature | -40°C ~ 80°C |
| Resolution | 0.00001 g |
| Waterproofing | Fluor O-Ring and High-density vacuum grease coating |
| Dimension | Sensor: L = 38 × 78 mm Plate: 98 × 152 mm |
| Material | Special stainless steel and High-density epoxy potting |
