Description
To directly measure settlement of the target ground and structures during civil engineering works, settlement pins are installed and measurements are taken using a level or a total station.
Settlement data such as settlement amount and settlement rate are used as fundamental information for evaluating stability.
▣ Applications
① Measuring ground settlement during retaining wall construction and soft-ground projects
② Measuring settlement and movement of structures such as harbors, bridges, and dams
Composition & Characteristic
▣ Components
① Ground Settlement Pin
② Circular Protective Box
▣ Features

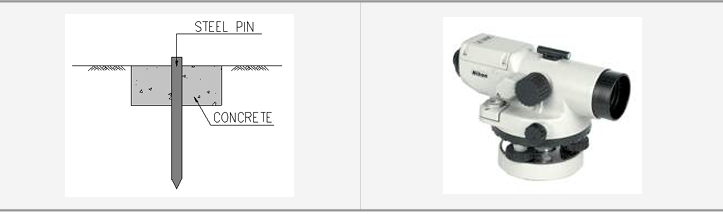

For ground installation, it is recommended to drive in a long-type pin and fix it with mortar.
For structural installation, it is preferable to drill the installation point, insert a short-type pin, and finish with epoxy.
Specification
| Model Name | SJ-820 | |||||
|---|---|---|---|---|---|---|
| Dimension | Test Tube | 70mm D(Ø)=12mm W=0.06kg |
200mm D(Ø)=12mm W=0.14kg |
200mm D(Ø)=15mm W=0.32kg |
300mm D(Ø)=12mm W=0.30kg |
500mm D(Ø)=12mm W=0.50kg |
| Storage Bottle | L=100mm / D(Ø)=100mm (Cap: 45 × 110mm) | |||||
| Material | Steel | |||||
This product is subject to change without prior notice to improve its quality.
