Description

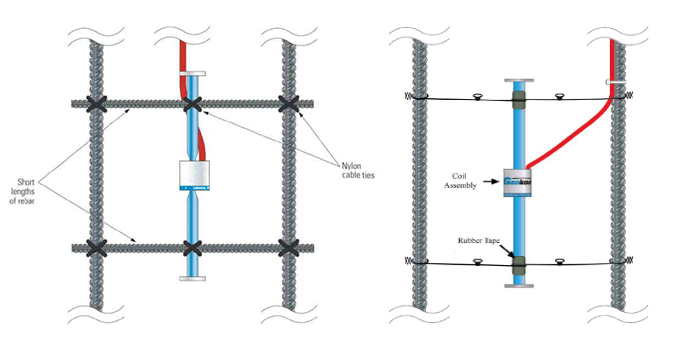

- The vibrating wire lining stress gauge is embedded in tunnel linings to measure the effective strain within concrete, allowing the assessment of structural stability.
- This product uses a rosette block to mount strain gauges in 2–4 directions, enabling easy measurement of strain magnitude, distribution, and trend.
- It can also be used for long-term monitoring of structures such as dams, bridges, and subways by comparing stress-free and loaded conditions using a case designed for stress-free strain gauges.
Composition & Characteristic
▣ Components
① Lining stress gauge sensor
② Cable
▣ Features
① Excellent reproducibility and responsiveness, unaffected by cable length or resistance variation
② Fully waterproof structure
③ High stability and high-sensitivity design
④ Built-in high-precision temperature sensor
Specification
SJ-4300
| Model Name | SJ-4300 |
|---|---|
| Compatible Sensors | Resonance Type Sensor (V/W Type) |
| Measurement Range | 400 ~ 1,250Hz |
| Measurement Band | Min 1,000 ~ Max 4,000με |
| Resolution | 1.0με |
| Accuracy | ±0.1% FSR |
| Linearity Error | ±0.5% FSR |
| Operating Temperature | -20°C ~ 50°C |
| Built-in Temp Sensor | NTC Thermistor (3KΩ-ATF) |
| Temp Sensor Working Range |
Thermistor: -40°C ~ 80°C |
| Temp Sensor Accuracy | Thermistor: ±1°C |
| Material | Stainless Steel 300, Fluorine O-RING & High Density Epoxy Potting |
| Waterproofing | 200m H2O |
| Signal Cable | Ø6.4mm, 0.235mm² X 4C Shielded PVC Sheath Cable |
This product is subject to change without prior notice to improve its quality.

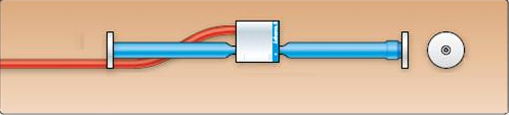

| Product Specifications | ||
|---|---|---|
| Length (L) (mm) | 155 | Product Dimensions |
| Gauge Length L(Gage) (mm) | 150 | |
| Diameter D(ø) (mm) | 21 | |
| Weight W (kg) | Sensor: 0.06 | |
| Protection Cover (mm) | 100 × 11mm | |
