Description
- During urban excavation and civil engineering works, tilt plates are installed at designated measurement points to measure the inclination and determine the displacement affecting nearby structures or ground due to construction activities. By measuring the tilt, the behavior and movement patterns of the structures can be identified.
- The device adopts digital control and tuning technologies to provide more accurate and stable output values. It is an integrated unit equipped with a built-in battery and calibration functions

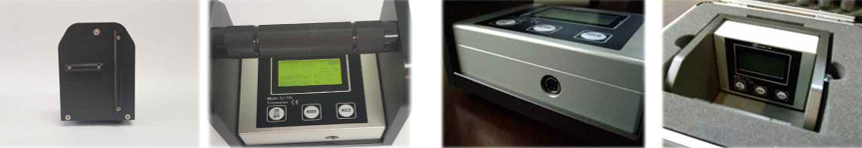

Composition & Characteristic
▣ Components
① Tiltmeter (built-in battery, ultra-precision molded housing)
② Protective case, charger
▣ Features
① Uses high-precision MEMS sensors
② Fast measurement speed and excellent data stability
③ Domestic production and in-house manufacturing for reliable after-sales service
④ Miniaturized and lightweight components
Specification
SJ-705
Technical Specifications
| Model Name | SJ-705 |
|---|---|
| Sensor Type | 2 MEMS Sensor |
| Measurement Range | ±15° (X, Y axis) |
| Resolution | 0.00357142Β (Degree/Volt) |
| Accuracy | ±0.05% FSR |
| Temperature Compensation | Built-in automatic temperature compensation |
| Dimensions |
– Housing: L = 148(168)×140mm / W = 105mm / H = 140(155)mm – Sensor: L = 95×125mm / H = 40mm |
| Weight | 2.0kg |
| Material | Body: Stainless steel case & carbide alloy, Measuring unit: Cabinet material |
| Operating Temperature | -20℃ ~ 50℃ |
| Display Screen | Large LCD |
| Lighting | Back-Light LCD |
| Power Supply | Rechargeable Li-Ion Battery (Operating Time: 32 hours) |
