Description
As a sensor to measure linear displacement of railroad roadbed, crown and other important structures by installation internal (1.0~3.0m), it calculates accurate values using high resolution sensor.
▣ Applications

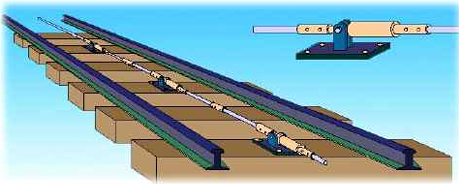

① Railroad track displacement measurement
② Measurement of tunnel crown displacement
③ Measurement of transverse section displacement of flimsy ground
④ Linear displacement measurement of important structures
Composition & Characteristic

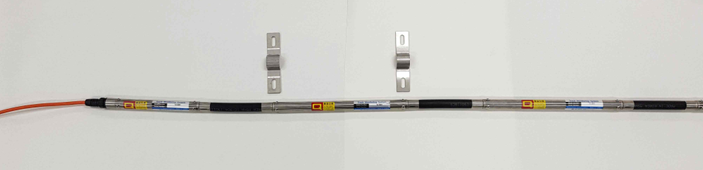

▣ Components
① Track Monitoring System
② Mounting Bracket & Extension Rod
③ Anchor Plate & Bolt
▣ Features
① Each sensor cable is one-line, so it is easy to install and the installation time can be saved much.
② Anchor block Angle adjustment and fixing device connection is simple and easy to install.
③ Installation cost is low due to cable one-line
Specification
| Model Name | SJ-2630 (1~3 axis) |
|---|---|
| Sensor applied | MEMS Sensor |
| Measurement Range | ±90° |
| Resolution | 10 arc seconds |
| Accuracy | ±0.1% FSR |
| Linearity error tolerance | ±0.5% FSR |
| Working temp | -40°C ~ 80°C |
| Dimension | L = 1.0m, D(ϕ) = 19mm (Customizing available depending on depth/length) |
| Materials | Stainless steel, Fluor O-ring & Aluminum |
