Description
- It measures internal and external temperature of the structure to analyze the stability and effect on the structure.
- For long-term stable data acquisition, the housing and signal cable are designed to be completely watertight and moisture-proof so that they can be used in harsh conditions in the field of civil engineering.
▣ Applications
- Measurement for temperature change of bridges, dam and harbor structures
Composition & Characteristic
▣ Components
① RTD Temperature Sensor
② Cable

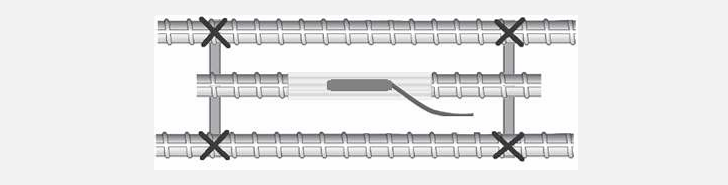

③ Jig for fixing sensor
▣ Features
① High stability working under the extreme
environments
② Excellent reproducibility and responsiveness
without being affected b
Specification
| Model Name | PT-100 |
|---|---|
| Sensor applied | RTD Type |
| Measurement range | -100°C ~ 500°C |
| Accuracy | ± (0.3+0.002 | t | ) |
| Waterproofing | Fluor O-Ring, High density vacuum grease coating |
| Dimension | L = 78mm / D(Ø) = 8mm |
| Weight | 0.01kg |
| Material | Special stainless steel and high density epoxy Potting |
