Description
It measures the reaction force working on the bottom of the structure to check up the stability of
the foundation ground and its effect on the structure, and it is also used to verify ground contact pressure by earth pressure and wave pressure predicted at the time of design.
For long-term stable data acquisition, the housing and signal cable are designed to be completely watertight and moisture-proof so that they can be used not only in harsh conditions in the field of civil engineering but also protected from external impacts.
▣ Applications
① Measurement of reaction force of the
foundation ground under caisson structure
② Measurement of reaction force of the
ground such as suction file, concrete foundation, etc.
Composition & Characteristic
▣ Components

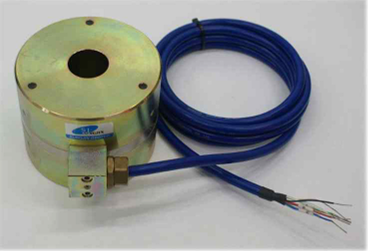

① Reactional force meter sensor
② Cable
③ Jig for fixing sensor
▣ Features
① High stability working under the extreme
environments
② Excellent reproducibility and responsiveness
without being affected by cable length and
resistance change
③ Designed for optimization and high sensitivity
by application
Specification
Thông số kỹ thuật Model SJ-6300
| Model Name | SJ-6300 |
|---|---|
| Sensor applied | V.W Type |
| Measurement range | 10 kgf/cm² |
| Resolution | ±0.02 % FSR |
| Accuracy | ±0.025 % FSR |
| Working Temp. | -40°C ~ 80°C |
| Waterproofing | Fluor O-Ring and High density vacuum grease coating |
| Dimension | I.D(Ø) = 35mm, O.D(Ø) = 128mm, H = 102mm |
| Weight | 9.7kg |
| Material | SCM alloy steel |
| Air tight materials | Special stainless steel and High density epoxy Potting |
