Dimension
| Item | SJ-2000 | |
|---|---|---|
| A (mm) | 165 | |
| B (mm) | 150 | |
| C (mm) | 24 | |
| D (mm) | 24 | |
| E (mm) | 21 | |
| F (mm) | 9 | |
| Weight | Sensor: 0.08 / Mounting block: 0.16 | |
Reference
* Strain (με) calculation:
- Microstrain (με) = Gage Factor × 10³ × F² = Gage Factor × 10⁸ / N²
Whereas, F=Hz measurement value, N=microsecond measurement value, Gage Factor=4.062
* Stress (σ) calculation:
- Stress (σ : kg_f/m²) = -1.0 × Strain (ε) × Material elastic modulus E
* Axial force (P) calculation:
- Axial Force (P : ton) = Stress (σ) × Material cross section (A) × 1000

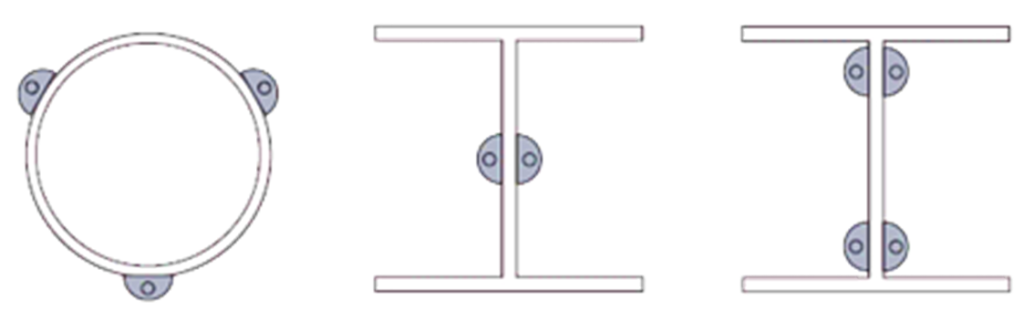

Standard installation : Steel pipe and Strut
