Description
VW embedment strain gauge is embedded in the concrete structure to measure the effective strain that affect the concrete inside. This product can measure stress, distribution direction and trend of strain, etc. with the strain gauge in 2 – directions using the Rosette Block. Also, non 4 – stress strain gauge case can be used to compare and verify the non – stress condition with load applying condition in dam, bridge, subway structure, etc. which are required for long – term measurement by non – stress case.
Composition & Characteristic
Component
- VW strain gauge main body
- Cable
Feature
- Excellent reproducibility and responsiveness which
is free from cable length or resistance change - Perfect waterproof structure
- High stability and high sensibility
- High accurate NTC Thermistor mounted.
Specification
| Model | SJ-2200 |
|---|---|
| Type | Vibration wire type |
| Measurement Frequency | 400 ~ 1,250Hz |
| Measurement strain range | Min 1,000 ~ Max 4,000με |
| Resolution | 1.0με |
| Accuracy | ±0.1% FSR |
| Non-linearity | ±0.5% FSR |
| Operation Temp. | -20℃ ~ 50℃ |
| Temp sensor | NTC Thermistor (3KD-ATF) |
| Temp sensor operation range | Thermistor: -40℃ ~ 80℃ |
| Temp. sensor accuracy | Thermistor: +/-1℃ |
| Main material | Stainless steel 300, Fluoro O-ring, High density epoxy potting |
| Waterproof capacity | 200m H₂O |
| Cable | ø6.4 mm, 0.235mm² x 4C Shield PVC SYS cable |
The product is subject to change without prior notice in order to enhance the product’s quality.
The product is subject to change without prior notice in order to enhance the product’s quality.

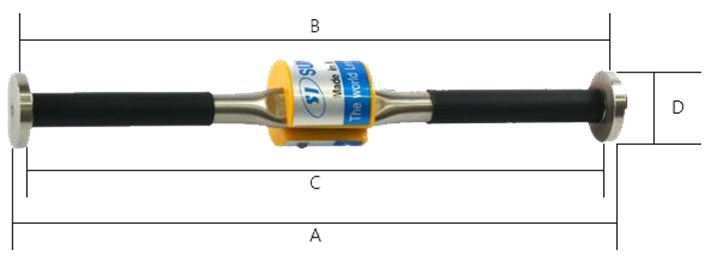

Diemsion
| Item | SJ-2200 | |
|---|---|---|
| Dimension | A (mm) | 155 |
| B (mm) | 153 | |
| C (mm) | 150 | |
| D (ø) (mm) | 19 | |
| Weight | Main body : 0.06 | |

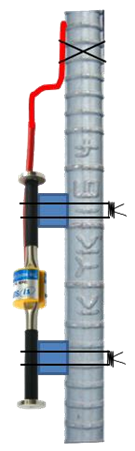

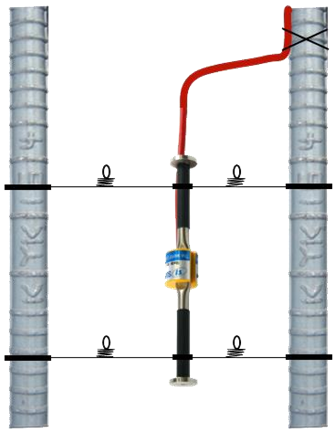

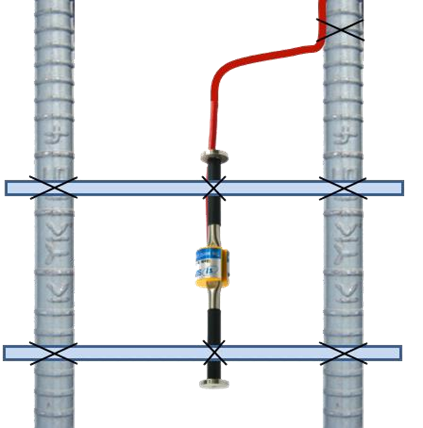

Installation

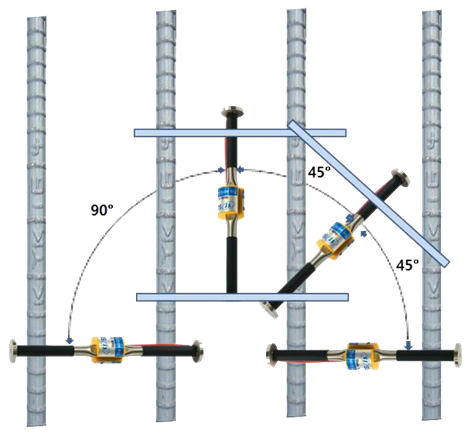

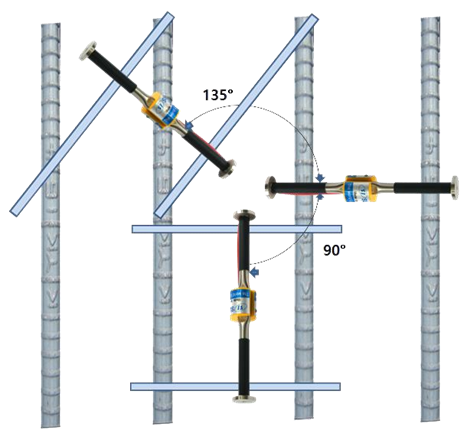

Multi direction stress measurement
