Description
- The inclinometer casing is a pipe with four internal guide grooves, designed for installation and operation of portable servo accelerometer-type inclinometers or multi-point fixed inclinometers used to measure horizontal ground displacement.
- It is applied for measuring inclination and tilt angles of retaining walls, slopes, embankments, piles, and steel pipes.
Composition & Characteristics

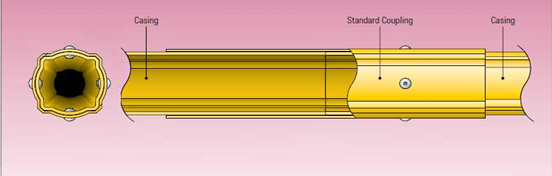

▣ Components
- Inclinometer Casing (ABS Casing)
- Coupling
- End Cap
▣ Features
- Excellent durability using ABS resin material
- Superior physical properties such as elasticity and mechanical strength
- Excellent chemical properties including low friction coefficient and high corrosion resistance
Specification
| Specification | SJ-610 60 Casing |
SJ-611 70 Casing |
SJ-620 60 Coupling |
SJ-621 70 Coupling |
|---|---|---|---|---|
| Tensile strength (kg/cm2) | More than 480 |
|||
| Manufacturing method | Injection method cutting | |||
| Kiwi processing precision | Within 0.2° | |||
| Permissible Curvature Radius | 85m or more | |||
| Operating Temperature / Humidity | -20°C ~ 100°C / 0 ~ 100% | |||
| Material | ABS (Acrylonitrile Butadiene Styrene) RESIN | |||
| O.D (mm) | 60±0.2 | 70±0.2 | 70±0.5 | 80±0.5 |
| I.D (mm) | 50±0.2 | 60±0.2 | 60.5±0.5 | 70.5±0.5 |
| LENGTH (mm) | 3000±5 | 3000±5 | 200±5 | 200±5 |
| Weight (kg) | 2.50 | 2.55 | 0.16 | 0.20 |
This product may be changed without prior notice to improve its quality.
