Description
This sensor measures the horizontal displacement of the ground and structures at different depths (1.0–3.0 m) during excavation or construction work. It uses a high-resolution sensor to provide precise and reliable measurements.
▣ Applications
- Measurement of horizontal displacement of retaining walls during earth retaining works
- Monitoring of potential slip surface movement on slopes
- Measurement of ground behavior in soft ground and harbor construction sites
Composition & Characteristic

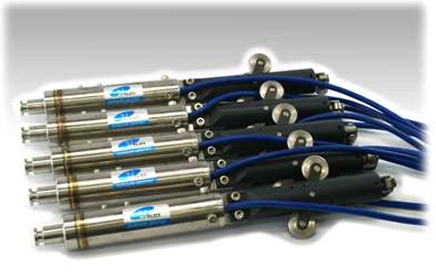

▣ Product Components
- Inclinometer Sensor
- Connecting Rod
- Cable & Accessories
▣ Features
- The IPI Sensor developed by our company can be installed according to the planned depth and interval for one-axis or two-axis horizontal displacement measurement.
- During installation, all sensor cables are integrated into a single-line configuration, allowing for easy installation without limitation on the number of sensors used.
- Depending on site conditions, the most suitable housing is applied to ensure high reliability of measurement data throughout the operation period.
Specification
| Specification | SJ-2400 (1-axis) | SJ-2401 (2-axis) |
|---|---|---|
| Sensor Type | MEMS Sensor | |
| Measurement Range | ±15° | |
| Resolution | 0.001785714 (Degrees/Volt) | |
| Zero Point | ±0.1% FSR | |
| Linear Accuracy | ±0.5% FSR | |
| Operating Temperature | -20°C ~ 50°C | |
| Dimensions | L = 500mm, D(Ø) = 36mm (Customizable depending on casing type) |
|
| Material | Stainless Steel Pipe | |
This product may be changed without prior notice to improve its quality.
