Description
- The SJ-603 Inclinometer System is designed for measuring horizontal ground displacement.
- It features a large LCD screen with backlight, making power usage and readings easy to view and operate, along with a directory menu function for convenient operation and user-friendly control.
- Compared to conventional measuring devices, it is smaller and lighter, allowing excellent portability. The power supply automatically turns off if the device is not used for more than 10 minutes.
- In addition, unlike previous models that required separate communication cables for each component, the Indicator-Read Cable and Indicator-Enter Key communications have been made wireless to enhance portability and ease of measurement.
Composition & Characteristics

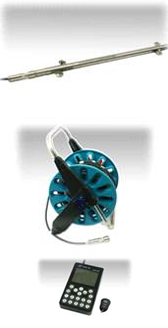

▣ Components
- Probe
- Indicator
- Reel Cable & Drum
- Remote Control
- Others: PC Cable, Charger, Portable Bag & Case
▣ Features
- The high-precision MEMS sensor provides outstanding shock recovery compared to conventional servo accelerometer types, minimizing measurement errors caused by vibration or impact during field operation.
- Excellent data stability and high-speed measurement.
- Wireless communication method for convenient portability and measurement.
- Quick after-sales service through domestic production and in-house manufacturing base.
- Miniaturized and lightweight design of each component.
Specification
Probe
| Model Name | SJ-603 |
|---|---|
| Sensor Type | 2 MEMS Sensors |
| Measurement Range | ±15° (X, Y axis) / B type: ±30° (X, Y axis) |
| Resolution | 0.01mm |
| System Accuracy | ±3.94mm/30M |
| Zero Point | ±0.05% FSR |
| Sinθ Correction | Sinθ = arc sin (length / 16,000 Digit) |
| Distance Between Probes (m/m) | Probe = Sinθ * measured value (0.5m interval up to 500) |
| Dimensions | L = 700mm / D(Ø) = 23mm / W = 1.7kg |
| Material | Stainless Steel |
| Waterproof | Complete Waterproof |
| Operating Temperature | -20°C ~ 50°C |
Indicator
| Display | Large LCD |
|---|---|
| Lighting | Back-Light LCD |
| Power | Rechargeable Li-Ion Battery |
| Internal Flash Memory | 40MB |
| Operating Time | 32 hours |
| Serial PC Communication (USB) | 115,600 bps |
| Total Project Name | 7 |
| Project Hole Creation Count | 50 |
| Hole Data Storage Count | 5 |
| Power Saving Mode | After 10 minutes of use, automatically Power Off (Power Off → Sleep Mode → Time Back-Up) |
| Dimensions | L = 105×170×30mm / W = 0.6kg |
| Operating Temperature | -20°C ~ 80°C |
Reel Cable
| Cable Length | 50m |
|---|---|
| Measurement Interval Display | 0.5m |
| Dimensions | L = 50m / D(Ø) = 7.0(±0.1)mm / W = 7.0kg |
| Material | Special Alloy Steel |
| Cable | 485-core Digital |
This product may be changed without prior notice to improve its quality.
Software
The operating system of this product’s software is compatible with Windows, Linux, and Macintosh. It allows for easy system installation and operation. In addition, it features an Excel file conversion function for convenient data handling.
