Description
The Multi-Level Settlement Gauge is used to measure the amount of settlement or heave that occurs in each soil layer of foundations, embankments, or dams under load.
It helps predict consolidation settlement and assess ground stability.
▣ Application
① Measurement of settlement and heave in foundations and embankment grounds
② Understanding consolidation behavior in soft ground
③ Measurement of displacement in levees and rock-fill dams
Composition & Characteristic
▣ Product Composition

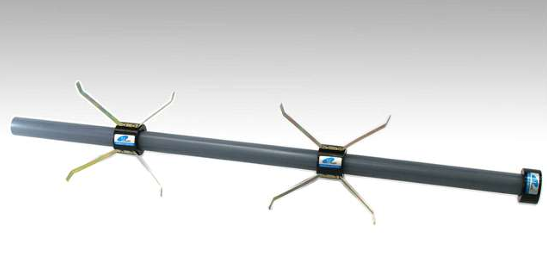

① Ring Magnet, Spider Magnet
② PVC Pipe
▣ Features
A simple measuring method in which a PVC pipe with installed magnetic sensors is embedded in the ground, and a probe is inserted into the pipe.
The depth at which the detection element and the sensor align is then measured.
Specification
| Model Name | SJ-5000 |
| Applied Sensor | Magnetic Type |
| Accuracy | 1.0mm |
| Dimension | I.D = 40mm, O.D = 60mm, L = 47mm |
| Weight | 0.16kg |
| Material | Plastic & Steel |
